Image Control Settings

Add a control that displays an image.

Control Description

The Image control displays an image that is PNG, GIF, or JPG file types.

Add the Control to a ProcessMaker Screen

Your ProcessMaker user account or group membership must have the following permissions to add a control to a ProcessMaker Screen unless your user account has the Make this user a Super Admin setting selected:

  • Screens: Edit Screens

  • Screens: View Screens

See the ProcessMaker Screens permissions or ask your ProcessMaker Administrator for assistance.

Follow these steps to add this control to the ProcessMaker Screen:

  1. Create a new ProcessMaker Screen or click the Edit iconto edit the selected Screen. The ProcessMaker Screen is in Design mode.

  2. View the ProcessMaker Screen page to which to add the control.

  3. Locate the Image iconin the panel to the left of the Screen Builder canvas.

  4. Drag the Image icon into the Screen Builder canvas. Existing controls on the Screen Builder canvas adjust positioning based on where you drag the control.

  5. Place into the Screen Builder canvas where you want the control to display on the ProcessMaker Screen.

  6. Configure the Image control. See Settings.

  7. Validate that the control is configured correctly. See Validate Your Screen.

Below is an Image control in Preview mode.

Image control in Preview mode

Move the Control on the Page

Your ProcessMaker user account or group membership must have the following permissions to move a control in a ProcessMaker Screen page unless your user account has the Make this user a Super Admin setting selected:

  • Screens: Edit Screens

  • Screens: View Screens

See the ProcessMaker Screens permissions or ask your ProcessMaker Administrator for assistance.

After adding a control to a ProcessMaker Screen page, you may move it to another location on that page such that it is above or below other controls placed on that page. A control cannot be moved to another ProcessMaker Screen page.

Follow these steps to move a control to another location on that ProcessMaker Screen page:

  1. Place your cursor anywhere on the control not displaying the Duplicate Controlor Delete Controlbuttons.

  2. Hold your cursor, then drag the control above or below other controls on that ProcessMaker Screen page. Screen Builder previews where the control would display on the page based on how you position the control above or below other controls. If the control cannot be placed in a location because your cursor is above an existing control or too far to the left or right of the page, theicon displays in the preview.

  3. Place the control at the location on the page you want it. The other control(s) on the page automatically adjust position.

Copy the Control with its Settings

Your ProcessMaker user account or group membership must have the following permissions to copy a control in a ProcessMaker Screen unless your user account has the Make this user a Super Admin setting selected:

  • Screens: Edit Screens

  • Screens: View Screens

See the ProcessMaker Screens permissions or ask your ProcessMaker Administrator for assistance.

Copying a control also copies the current settings of that control. The copied control displays below other controls placed on that ProcessMaker Screen page.

Follow these steps to copy a control:

  1. Select the control to be copied.

  2. Click the Duplicate Control button. The control copies with its current settings, and then displays below other controls placed on that page.

Delete the Control from a ProcessMaker Screen

Your ProcessMaker user account or group membership must have the following permissions to delete a control from a ProcessMaker Screen unless your user account has the Make this user a Super Admin setting selected:

  • Screens: Edit Screens

  • Screens: View Screens

See the ProcessMaker Screens permissions or ask your ProcessMaker Administrator for assistance.

Deleting a control also deletes configuration for that control. If you add another control, it will have default settings.

Follow these steps to delete a control from a ProcessMaker Screen page:

  1. Select the control to be deleted.

  2. Click the Delete button. The control deletes. Other controls on that ProcessMaker Screen page adjust their locations automatically.

Settings

Permissions Required

Your user account or group membership must have the following permissions to edit a ProcessMaker Screen control:

  • Screens: Edit Screens

  • Screens: View Screens

See the ProcessMaker Screens permissions or ask your ProcessMaker Administrator for assistance.

Topic Update

This topic is updated for ProcessMaker version 4.0.1. See the Release Notes.

The Image control has the following panels that contain settings:

Configuration Panel Settings

Click the control while in Design mode, and then click the Configuration panel that is on the right-side of the Screen Builder canvas.

Below are settings for the Image control in the Configuration panel:

Name

Enter the alphanumeric name that identifies the image in this ProcessMaker Screen.

Upload

Click the Upload button to browse for the PNG, GIF, or JPG file type image to upload to the Image control.

Preview

Preview the uploaded image.

Helper Text

Enter text that provides additional guidance on this control's use. This setting has no default value.

Design Panel Settings

Click the control while in Design mode, and then click the Design panel that is on the right-side of the Screen Builder canvas.

Below are settings for the Image control in the Design panel:

Height

Enter the height of the uploaded image in pixels. If the Width setting has no value, the Image control adjusts the uploaded image to the Height setting value.

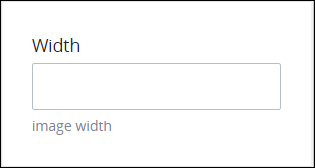

Width

Enter the width of the uploaded image in pixels. If the Height setting has no value, the Image control adjusts the uploaded image to the Width setting value.

Advanced Panel Settings

Click the control while in Design mode, and then click the Advanced panel that is on the right-side of the Screen Builder canvas.

Below are settings for the Image control in the Advanced panel:

Visibility Rule

Specify an expression that indicates the condition(s) under which this control displays. See Expression Syntax Components for "Visibility Rule" Control Settings. If this setting does not have an expression, then this control displays by default.

To make this control hidden until another control contains a value, enter the Variable Name setting value of that control to this control's Visibility Rule setting.

CSS Selector Name

Enter the value to represent this control in custom CSS syntax when in Custom CSS mode. As a best practice, use the same CSS Selector Name value on different controls of the same type to apply the same custom CSS style to all those controls.
