Slack Notification Connector
Send automatic notifications to Slack channels during Requests.

Overview

The Slack Notification connector is part of the Slack Notification package. When you add the Slack Notification connector to your Process model and then select to which Slack channel to send a notification, ProcessMaker can automatically send notifications via Slack during Requests.

Grant ProcessMaker Access to Your Slack Workspace

Before using the Slack Notification connector in your Process models, your ProcessMaker instance must be granted access to your Slack workspace by building a Slack App. Ask your Slack administrator to help you with the following:
Otherwise, when configuring the Slack Notification connector, the following ProcessMaker error displays: Request failed with status code 404.

Package and Permissions Required

The Slack Notification package must be installed to use the Slack Notification connector.
Furthermore, your user account or group membership must have the following permissions to configure a Slack Notification connector to the Process model unless your user account has the Make this user a Super Admin setting selected:
  • Processes: Edit Processes
  • Processes: View Processes
See the Process permissions or ask your Administrator for assistance.

Add a Slack Notification Connector to the Process Model

Follow these steps to add a Slack Notification connector to the Process model:
  1. 1.
    View your Processes. The Processes page displays.
  2. 2.
    Create a new Process or click the Open Modeler icon
    to edit the selected Process model. Process Modeler displays.
  3. 3.
    Locate the Slack Notification connector in the Elements and Connectors palette that is to the left of the Process Modeler canvas. If the Hide Menus button
    is enabled, the Elements and Connectors palette displays the Slack Notification connector's icon
    .
  4. 4.
    Drag the connector into the Process model canvas where you want to place it. If a Pool element is in your Process model, the Slack Notification connector cannot be placed outside of the Pool element.
Slack Notification connector
After adding the Slack Notification connector, consider adding the following Boundary-type Process model elements to design business solutions when your best-case scenarios don't happen:
After the connector is placed into the Process model, you may adjust its location in the following ways:
Moving a Slack Notification connector has the following limitations in regards to the following Process model elements:
  • Pool element: If the Slack Notification connector is inside of a Pool element, it cannot be moved outside of the Pool element. If you attempt to do so, Process Modeler places the Slack Notification connector inside the Pool element closest to where you attempt to move it.
  • Lane element: If the Slack Notification connector is inside of a Lane element, it can be moved to another Lane element in the same Pool element. However, the Slack Notification connector cannot be moved outside of the Pool element.

Customize the Appearance of a Slack Notification Connector

Customize the Slack Notification connector's appearance in the following ways:
After a Slack Notification connector is added to a Process model, optionally customize these aspects of its appearance. Each Slack Notification connector's appearance may only be changed individually.

Change a Slack Notification Connector's Color

A Slack Notification connector's shape, icon, and label are black-colored by default.
Follow these steps to change the color and label for a Slack Notification connector:
  1. 1.
    View your Processes. The Processes page displays.
  2. 2.
    Click the Open Modeler icon
    to edit the selected Process model. Process Modeler displays.
  3. 3.
    Select the Slack Notification connector to change its color. Available options display above the selected connector.
  4. 4.
    Click the Open Color Palette icon
    . The color palette displays.
  5. 5.
    Do one of the following:
    • Select a color swatch: Select one of the color swatches from the color palette. The Slack Notification connector and label change to that color.
    • Specify a custom color: Click the
      icon to display the color selector, and then select a color, enter the Hex color code, or enter the red, green, blue, and alpha color values for the custom color. The Slack Notification connector and label change to that color.
    • Reset to the default color: Click the
      icon to reset the Slack Notification connector and label to its default color.

Change a Slack Notification Connector's Icon

Slack Notification connectors display the
icon in the shape by default.
Follow these steps to change the icon for a Slack Notification connector:
  1. 1.
    View your Processes. The Processes page displays.
  2. 2.
    Click the Open Modeler icon
    to edit the selected Process model. Process Modeler displays.
  3. 3.
    Select the Slack Notification connector to customize. Available options display above the selected connector.
  4. 4.
    Click the Open Color Palette icon
    . The color palette displays.
  5. 5.
    Click the
    icon. The Select a custom icon screen displays.
  6. 6.
    From the Search drop-down menu, select the icon to display. The Slack Notification connector's icon changes to the selected icon.
  7. 7.
    Click OK.
To reset the Slack Notification connector to its default icon, click the Reset to Default button from the Select a custom icon screen.

Copy a Slack Notification Connector

Copying a Slack Notification connector copies the original along with its current settings, making it easier and faster to continue designing without adding default elements or connectors with their default settings.
The copied Slack Notification connector displays below the original. Any Sequence Flow and/or Message Flow elements incoming to or outgoing from the original are not copied.
Follow these steps to copy a Slack Notification connector in your Process model:
  1. 1.
    View your Processes. The Processes page displays.
  2. 2.
    Click the Open Modeler icon
    to edit the selected Process model. Process Modeler displays.
  3. 3.
    Select the Slack Notification connector to copy. Available options display above the selected connector.
  4. 4.
    Click the Copy Element icon
    . The Process model connector copies.

Delete a Slack Notification Connector

Deleting a Process model connector also deletes any Sequence Flow and/or Message Flow elements incoming to or outgoing from that element. For example, if a Process model connector is deleted that has both incoming and outgoing Sequence Flow elements, the Sequence Flow elements must be reconnected for the remaining elements/connectors.
Follow these steps to delete a Slack Notification connector from your Process model:
  1. 1.
    View your Processes. The Processes page displays.
  2. 2.
    Click the Open Modeler icon
    to edit the selected Process model. Process Modeler displays.
  3. 3.
    Select the Slack Notification connector to delete. Available options display above the selected connector.
  4. 4.
    Click the Delete icon
    . The Process model connector deletes.

Settings

The Slack Notification connector has the following panels that contain settings:

Configuration Panel Settings

The Slack Notification connector has the following settings in the Configuration panel:

Edit the Connector Name

A connector name is a human-readable reference for a Process model control. Process Modeler automatically assigns the name of a Process model connector with its connector type. However, a connector's name can be changed.
Follow these steps to edit the name for a Data Connector connector:
  1. 1.
    Select the Slack Notification connector from the Process model in which to edit its name. Panels to configure this connector display.
  2. 2.
    Expand the Configuration panel if it is not presently expanded. The Name setting displays. This is a required setting.
  3. 3.
    In the Name setting, edit the selected connector's name and then press Enter.

Select the Slack Channel to Send the Notification

Select to which Slack channel to send the notification. Slack channels are only available for the Slack workspace that your ProcessMaker instance is granted access.
Follow these steps to select to which Slack channel to send the notification:
  1. 1.
    Select the Slack Notification connector from the Process model in which to edit its name. Panels to configure this connector display.
  2. 2.
    Expand the Configuration panel if it is not presently expanded, and then locate the Select a Slack Channel setting.
  3. 3.
    From the Select a Slack Channel drop-down menu, select the Slack channel to send the notification.

Enter the Slack Notification Message to Send

Follow these steps to enter the Slack notification message to send:
  1. 1.
    Select the Slack Notification connector from the Process model in which to edit its name. Panels to configure this connector display.
  2. 2.
    Expand the Configuration panel if it is not presently expanded, and then locate the Input Your Message setting.
  3. 3.

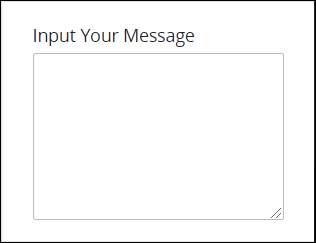

    In the Input Your Message setting, enter the notification message and then press Enter.

Documentation Panel Settings

Edit the Connector's Description Displayed in Process Documentation

If the Documentation package is installed, describe the connector's purpose and how it functions in the Process. This description does not affect Requests for the Process, but may be useful for Process model maintenance such as how the connector is configured. Edit information by using the What-You-See-Is-What-You-Get (WYSIWYG) rich text editor.
A Process's entered documentation displays by selecting the View Documentation icon for that Process.

ProcessMaker Package Required

The Documentation package must be installed to view or edit the documentation for a Process element or connector. Use the Documentation package to view documentation for Processes that includes an image of the Process map and entered description of its elements and connectors.
Follow these steps to edit the description for a connector:
  1. 1.
    Select the connector from the Process model in which to edit its description. Panels to configure this connector display.
  2. 2.
    Expand the Documentation panel if it is not presently expanded. The Description setting displays.
  3. 3.
    In the Description setting, edit the information to display when viewing documentation for this connector and then press Enter. Alternatively, use the What-You-See-Is-What-You-Get (WYSIWYG) rich text editor to stylize your text by clicking the More icon
    .
    Follow these guidelines to use the WYSIWYG rich text editor to stylize your text:
    • Undo changes: Click on the
      icon to undo the last action.
    • Redo changes: Click on the
      icon to redo the last undone action.
    • Insert/Edit Link: Click on the
      icon to convert the selected text into a hyperlink. Follow these steps to create a hyperlink:
      1. 1.
        Select the required text from the Rich Text control.
      2. 2.
        Click on the
        icon. The Insert/Edit Link screen displays.
      3. 3.
        In the URL setting, enter the destination URL.
      4. 4.
        In the Text to display setting, edit or enter the text displayed in the Rich Text control.
      5. 5.
        In the Title setting, enter the text to display when a user hovers over the displayed text.
      6. 6.
        From Open link in… drop-down menu, select one of these options:
        • New window: Select this option to open the destination page in a new browser window.
        • Current window: Select this option to open the destination page in the current browser window.
    • Insert/Edit Image: Click on the Insert/Edit Image icon
      to insert an image. Follow these guidelines:
      1. 1.
        Click on the Insert/Edit Image icon
        .
      2. 2.
        The Insert/Edit Image screen displays:
      3. 3.
        In the Source setting, enter a URL for the image.
      4. 4.
        In the Alternative Description setting, enter the text to display if the source URL of the image is not accessible.
      5. 5.
        In the Width setting, enter the maximum width for the image.
      6. 6.
        In the Height setting, enter the maximum height for the image.
      7. 7.
        Toggle the Constrain Proportions icon
        to maintain the width-height ratio of the image to its original proportion.
      8. 8.
        Click Save.
    • Insert Page Break for PDF: Click on the Insert Page Break for PDF icon
      to insert a page break when a PDF document is created for this documentation if your browser supports this feature.
    • Format text: Follow these guidelines to format text:
      • Headings: From the Paragraph/Formats menu, select Headings and then select a heading size.
      • Bold: Do one of the following:
        • From the editor toolbar, select the
          icon.
        • From the Paragraph/Formats menu, select Inline and then Bold.
      • Italics: Do one of the following:
        • From the editor toolbar, select the
          icon.
        • From the Paragraph/Formats menu, select Inline and then Italic.
      • Underline: From the Paragraph/Formats menu, select Inline and then Underline.
      • Strikethrough: From the Paragraph/Formats menu, select Inline and then Strikethrough.
      • Superscript: From the Paragraph/ Formats menu, select Inline and then Superscript.
      • Subscript: From the Paragraph/Formats menu, select Inline and then Subscript.
      • Code: From the Paragraph/Formats menu, select Inline and then Code.
      • Paragraph: From the Paragraph/Formats menu, select Blocks and then Paragraph.
      • Blockquote: From the Paragraph/Formats menu, select Blocks and then Blockquote.
      • Division: From the Paragraph/Formats menu, select Blocks and then Div.
      • Preformatted: From the Paragraph/Formats menu, select Blocks and then Pre.
      • Change text color: Use the Text Color drop-down to change text color. Click on the
        icon. The color palette displays. Do one of the following:
        • Select one of the color swatches from the color palette. The selected text changes to that color.
          • Click the
            icon to select a custom color from the Color Picker.
          • Click the
            icon to reset the text to its default color.
      • Align text: Follow these guidelines to align text:
        • Left align: Do one of the following:
          • From the editor toolbar, use the
            icon to left-align text.
          • From the Paragraph/Formats menu, select Align and then Left.
        • Center align: Do one of the following:
          • From the editor toolbar, use the
            icon to center-align text.
          • From the Paragraph/Formats menu, select Align and then Center.
        • Right align: Do one of the following:
          • From the editor toolbar, use the
            icon to right-align text.
          • From the Paragraph/Formats menu, select Align and then Right.
        • Justify: Do one of the following:
          • From the editor toolbar, use the
            icon to justify text.
          • From the Paragraph/Formats menu, select Align and then Justify.
      • Insert a bullet list: Use the
        icon to format text as a bulleted list.
      • Insert a numbered list: Use the
        icon to format text as a numbered list.
      • Indent text: Click on the
        icon to increase text indenting.
      • Outdent text: Click on the
        icon to decrease text indenting.
